RA1035

RA1035

RAKES

Call for Pricing

Extended Warranty

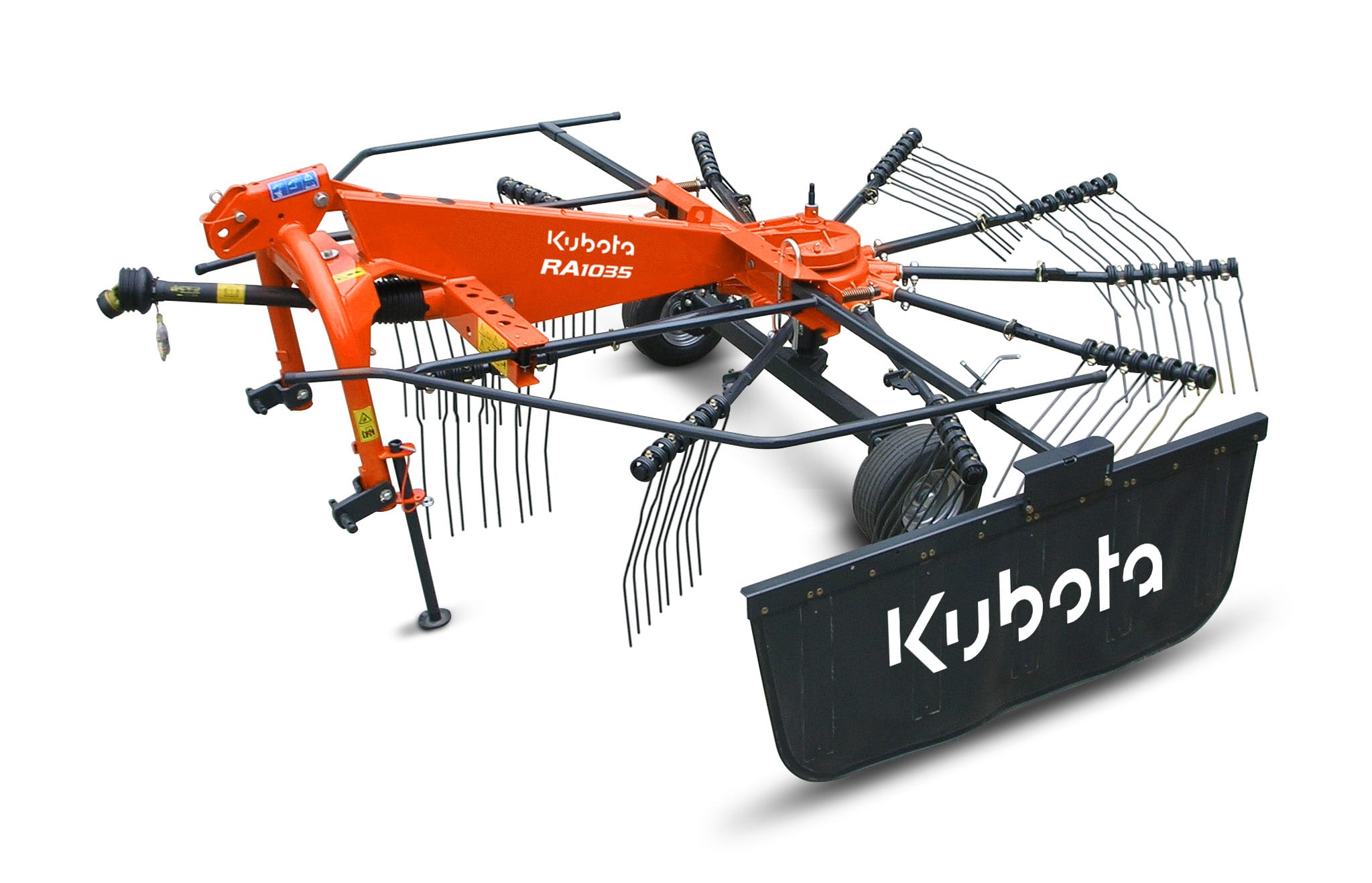

Spend more time working and less time maintaining with the Kubota RA1035 Rake! Built with all types and volumes of crops in mind, the three-point linkage, 9’ 2” rake is easily maneuvered and transported. Its exceptional raking ability is achieved through high tine frequency for a clean performance. Top-of-the-line durability and ease of use promise that you’re going to be seeing clean and optimized results in no-time at all.

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • RAKE SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!

    RAKE SERIES
RA1035

RA1035

HP

Call for Pricing

Specifications

Capacity Theo. ( Acres/h)

9.6

Carrier Arm Compensating

Optional

Continuous Cam Track

N/A

Detachable Tine Arms

Standard

Farm Line

Standard

Fixed Tandem Axle

Optional

Gauge Wheel 16"

Optional

Height Adjustment

Mechanical

Linkage Drawbar

N/A

Locking Catch For Slopes

Optional

Lower Links (2-pt.)

N/A

Number Of Arms Per Rotor

10

Number Of Double Tines/ Arm

4

Number Of Rotors

1

Parking Height Ft.

5' 7"

Pivoting 3-pt Headstock (cat.)

1/2

Pivoting Tandem Axle

N/A

Pro Line

N/A

Road Lights

Optional

Rotor Diameter Ft.

9' 2" (2.8)

Stand. Tires ( Carrying Frame)

N/A

Swath Delivery

Left

Tine Diameter In.

.35"

Tires ( Rotors)

16x6.5-8

Transport Length Ft. (m)

11'

Transport Width Ft. (m)

5' 9"

Warning Panels

Optional

Weight Lbs. (kg)

926 (420)

Working Width Ft. (m)

11' 6"
