RA110CR
RAKES
Call for Pricing

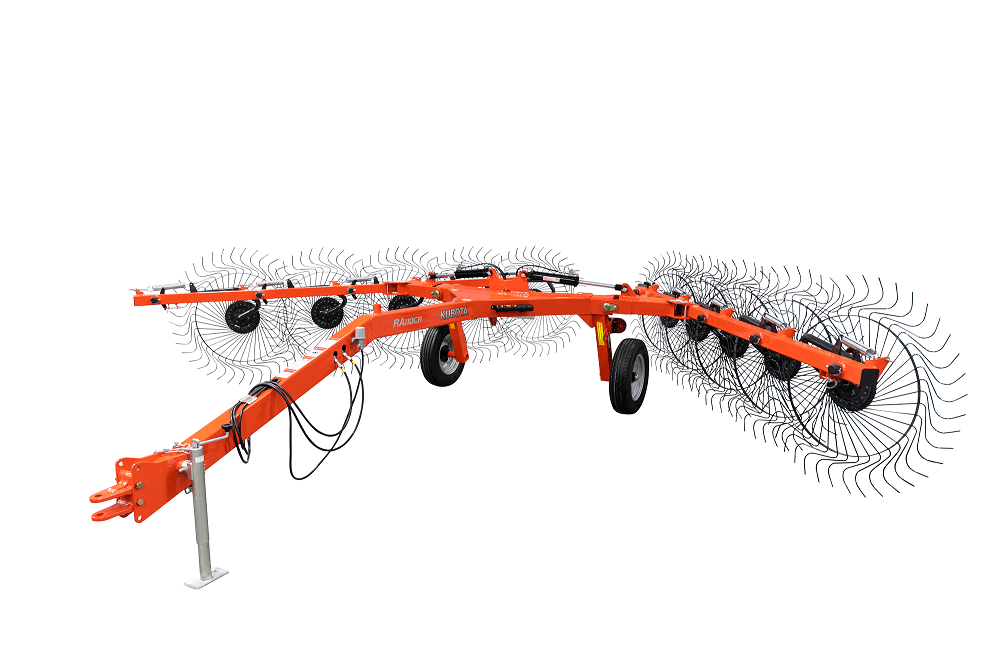

Not only is the Kubota RA110CR well-suited for handling dry hay, it features a 12-height adjustable drawbar to make sure you’re getting the best working angle for your needs. The rake is 21’ 6” long and spans a 20’ 4” working width, allowing for increased coverage of your windrows and makes sure you’re operating at peak potential. Individual rake wheel suspension will take you even further by following rough ground contour in uneven hay fields. Factor in the transport width of just 9’ 6” and there’s no denying that the RA110CR is one capable rake.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
RAKE SERIES
Specifications
Hydraulic Circuits
Hydraulic Power Required
Minimum P T O Horsepower Required H P/ K W
Transport Height Ft. (m)
Transport Length Ft. (m)
Transport Width Ft. (m)
Weight Lbs. (kg)
Windrow Ft. (m)
Wing Spread
Working Length ( Max.)
Working Width Ft. (m)
Working Ft. (m)
Hydraulic Circuits
closed-center or open-center, one remote
Hydraulic Power Required
1800psi, 10gpm
Minimum P T O Horsepower Required H P/ K W
40 hp
Transport Height Ft. (m)
Min: 8' (2.4) Max: 8' 9" (2.7)
Transport Length Ft. (m)
21' 2" (6.5)
Transport Width Ft. (m)
9' 6" (2.9)
Weight Lbs. (kg)
1640 (734)
Windrow Ft. (m)
Min: 34" (.8) Max: 72" (1.8)
Wing Spread
N/A
Working Length ( Max.)
21' 6" (6.6)
Working Width Ft. (m)
Min: 18' 4" (6) Max: 20' 4" (6.2)
Working Ft. (m)
55" (1.4)
